| Parts Name: |
SMT FEEDER Calibration Jigs |
Voltage: |
220V |
| Size: |
L500*W350*H500(MM) |
Function: |
Use For FUJI CP , QP Feeders |
| Material: |
Stainless Steel |
|
|
| High Light: |
pick and place feeder, intelligent feeder |
FUJI CP6 SMT Equipment Feeders Calibration Jigs made in China
Specifications
1. Feeder Calibration
2. for FUJI CP6 feeder
3. Type Pneumatic/Manual
4. Camera CCD
5. One year quarantee

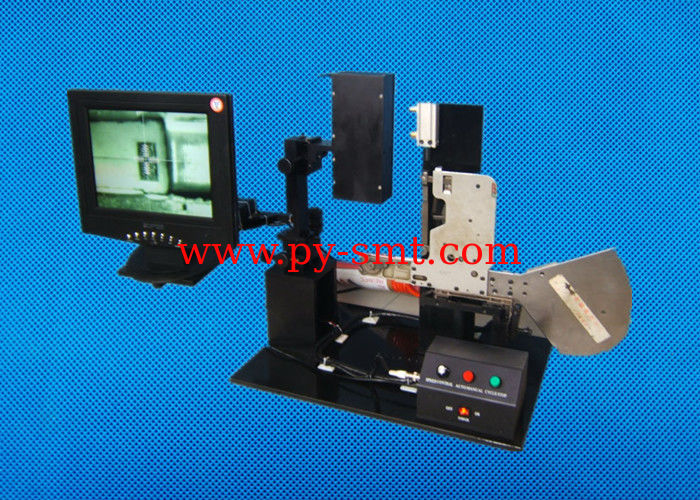

FUJI CP6 Feeder Calibration JIG
1. Feeder Calibration
2. for FUJI CP6 feeder
3. Type Pneumatic/Manual
4. Camera CCD
5. One year quarantee
It is essential for this equipment that enhanced productivity , installation and quality improvement
As the high efficiency vision camera is asked in order to investigate precisely and repair the error of device position which results from the modification and wear of tape feeder in the SMD device.
The Feeder, which supplies resources in the SMT production line, should be under clear condition continuously because it has relatively close correclation with the quality of a current line, production efficiency and loss
Convenience in use---------
1. The acquisition for the rectangular coordinate of X-Y direction.
2. Check for the existence, transformation, user in the feeder
3. The installation is to euip it with actual device and consolidation in feeder base
4. Lens` safe arrival part, CCD Camera, the precise micro controller of X, Y, Z axis
5. The automatic (or semi-automatic), IC transfer device can move IC to the specific area(point)
6. The simple calibration for removing or taking feeder easily
7. It is correction as measurement with CCD Camera.
8. Timer control make it pssible to change the IC pick-u time.
9. The use pressure is able to control in the regulator and air cylinder.
10. Verification and correction available worker`s convenience and well carriage by the work desk.
Specification:
Overall size 500X350X550mm , L X W X H
Type Pneumatic/Manual
Monitor 12" LED Display with cross mark
Camera CCD 50times magnfication
