Automatic Screw Tightening Machine |
Voltage: |
AC 220V 50HZ |
| Power: |
About 500W |
Temp: |
-20℃-40℃ |
| Screw Lock Speed: |
1.5-2.2S/pcs (not Included Load &unload Time) |
Max Running Speed: |
500mm/s |
| High Light: |
auto screw tightening machine, wave soldering machine |
Automatic Screw Machine

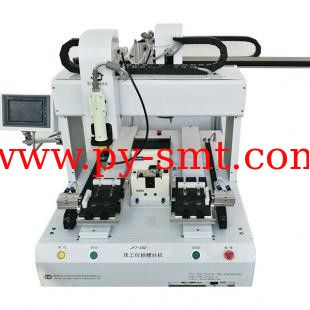

6 axis desktop robot Screw Lock Machine with two screwdriver
Fatures:
1, Strong commonality.Small volume, can cooperate with production line operation, convenient replacement products. According to coordinates setting , and also can be read CAD document complete setting .
2, the Z axis can be installed at most four lock electric screwdriver at the same time pay, greatly improve production efficiency.For replacement products, just change coordinates point can be lock .
3, Y axis can according to need to make double location ( double Y axis), the operator can alternate products up and down.
4 L p, suitable screw specification L≥1.2 D (D = screw head diameter, L = length of screw thread) conforms to the condition screw are available this desktop blowing type automatic locking screw machine.
5, this Automatic screw feeding machine available for similar size screw length is + / - 5 mm .
Special design Screw feeding system
| Specification |
Machine
construction | Machine dimension: | 680*650*745mm (according to products size) |
| XYZ Dimension: | X:500mm Y1:300mm Y2:300mm Z:100mm |
| Voltage: | AC 220V 50HZ |
| Power: | About 500W |
| Temp : | -20℃-40℃ |
| Frame: | Aluminum alloy high strength structural movement platform |
| Conveying way: | Linear guide module+lead screw+Servo motor driven |
| Screw feeding way | HM3 feeder + tighten gripper+chunk+screwdriver bits |
| Screw lock speed: | 1.5-2.2S/pcs (not included load &unload time) |
| Max running speed: | 500mm/s |
| Control system | Main control program | Panasonic PLC |
| HMI | Touch Screen |
| Program input | Teaching input |
| I/O Signal | 8INPUT/8OUTPUTS |
| Communication | serial port RS232C |
| Program storage | 50 group(according to customer request edit program,program free switch) |
Posistion
precision | Precision request | X,Y,Z:+/-0.05mm |
| Z:+/-0.02mm; |
| Screwdriver | Screw drvier model | HIOS CLF4000 |
| Torque | 1-5.5kgf.cm |
| Screw feeder | Feeder model | HM3-150 Mechanical blow type feeder |
Application
range | XYZ screw range | 500*300*300*100mm |
Screw lock
products size | 280*260mm |
| Products&fixture size | According to customer products size |
| Detection | Screw slip detection | Yes |
| Screw leakage detection | Yes |
| NG Screw tighen detection | Alarm light + buzzer on |
