Part Number: |
40003271 |
Parts Model: |
PL101-RT13 |
Parts Name: |

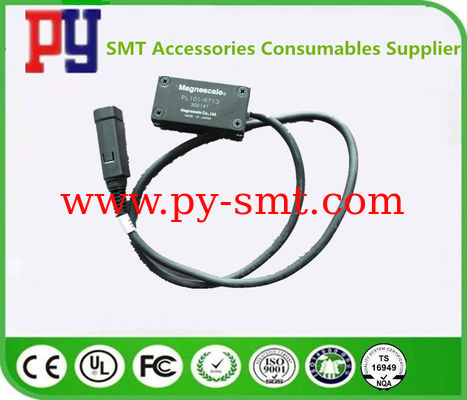

MAGNETIC SCALE YR HEAD |
Material: |
Stainless Steel |
Funcation: |
JUKI KE2050 Flexible Mounter |
Warranty: |
1 Year |
Stocks: |
With Stocks |
|
|
High Light: |
smt pressure sensor, surface mount components |
40003271 MAGNETIC SCALE YR HEAD PL101-RT13 for JUKI KE2050 Flexible Mounter
