Reflow Oven Machine SMT Assembly Equipment Thermal Profiler Orginal New Condition

Reflow Oven Machine SMT Assembly Equipment Thermal Profiler Orginal New Condition

Product Details:

Place of Origin:Japan
Brand Name:KIC
Certification:ISO
Model Number:KIC Start 2

Payment & Shipping Terms:

Minimum Order Quantity:1
Price:USD 1-100
Packaging Details:Box
Delivery Time:1 day
Payment Terms:L/C, T/T
Supply Ability:Long-term supply
Description
Machine Model: KIC Start 2 Parts Name: SMT Thermal Profiler Slim
Condition: Orginal New Material: Smt Tape
Function: SMT Reflow Oven Machine Brand: KIC
High Light:

auto screw tightening machine

,

epoxy dispensing machine

SMT Reflow Oven Machine Thermal Profiler KIC Start 2 Advantages Profling

Exceptional ValueThe KICstart2 ™ thermal profiler utilizes core technologies developed by KIC, the world’s premier thermal profiling company, and is supported by KIC’s worldwide organization. Packaging these innovative technologies into a low-cost system, the KICstart2 is an ideal cost effective thermal profiler.



Ease of UseThe KICstart2 profiler has everything you need to quickly acquire an accurate profile, without complicated features that can slow you down. For applications where all you want is your product’s thermal profile, immediately with no fuss, the KICstart2 is for you. The patented design concept automatically identifies the location of each oven heating zone, so no or few measurements are required. This design automatically corrects for different TC locations on the part, aligning them for improved profile graph viewing. Production down time is reduced when using the Manual Prediction software which enables the process engineer an instant “trial and error” capability when searching for more suitable oven recipes. The profiling data is automatically transferred to a PC when plugging in the USB cable. With its easy to use and intuitive software, new personnel can be trained in record time.



Instant Process AnalysisOnce your profile has completed, the KICstart2 automatically analyzes your process using the Process Window Index™ (PWI™). The PWI is a single number that measures how well your profile fits within your product’s thermal process window (See the Process Window Index data sheet for details). The PWI provides an instant and objective conclusion whether your product profile is in spec, eliminating guesswork and opinion from process analysis. This helps you ensure that all your products on all your lines are manufactured with measurable, consistent quality.



Reliable and RobustThe superior accuracy and reliability of the KICstart2 is nothing less than you would expect from KIC’s award winning product line. The KICstart2 is a six thermocouple datalogger unit that utilizes solid state technology designed to withstand the daily or weekly thermal cycles for years to come, for both lead-free and leaded assemblies.KICstart your thermal process



KICstart2Accuracy: ...................± 0.5°C

Resolution: .................Variable 0.3 to 0.1°C

Internal Operating Temp: 0°C to 105°C

Sample Rate: ..............0.1 to 10 readings/sec

Data Points: ................45,000

PC Connection: ..........USB 2.0 (Std-A/Mini-B)

Power Requirements: 9V alkaline battery

Thermocouple Compatibility:6 Channel Unit: ....Type K, StandardTemperature Range: ..-150°C to 1050°C

Dimensions (LxWxH):6 Channel Unit:205mm x 66mm x 20mmThermal Shield: .......................See Temperature Tolerance Table below for specifications.



Datalogger Model: data are downloaded to the computer through a USB cable after the run



Profiling Reduced to a Single NumberThe PWI measures the profile’s fit to the process window in a mathematical and objective manner by using a single number. This aids in optimizing the process by comparing and ranking alternative profiles in terms of their fit to the available process window. The lower the PWI, the more efficient and stable the process! (See the PWI data sheet for a detailed explanation)



Minimum System Requirements

Dual Core / 1 GHz Processor PC with 2 GB RAM2 GB available storage

Video 1024 x 768 resolution / 16-bit

1 available USB port (for data download)

1 available USB port (for software key)

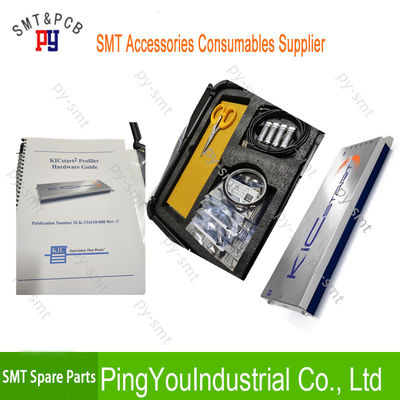

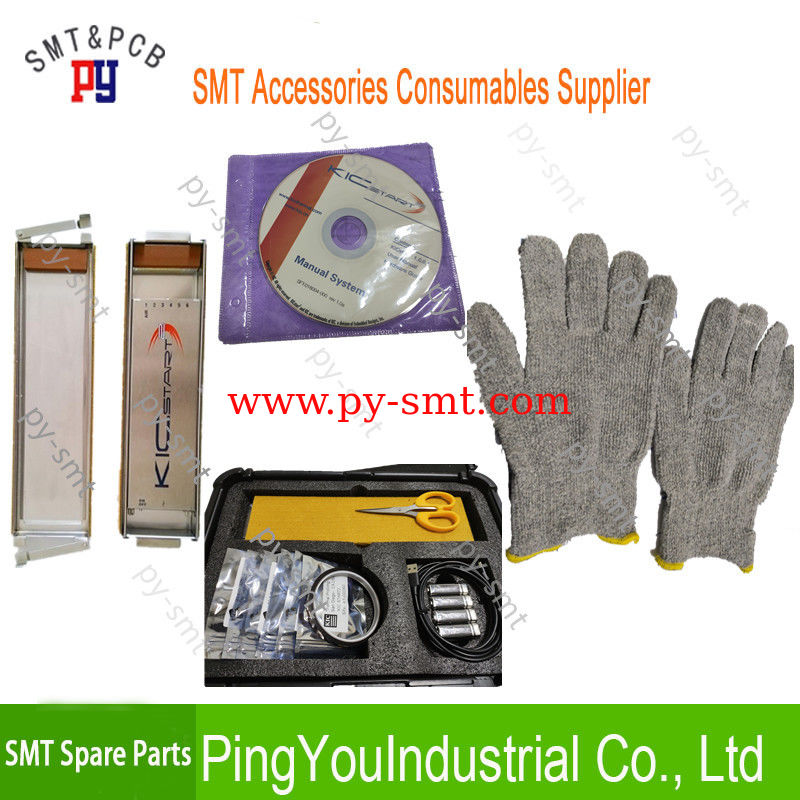

KICstart2 Kit ContentsProfilerThermocouplesThermal ShieldCarrying CaseSoftware CDElectronic User ManualSoftware Protection DongleElectronic Hardware GuideUSB Cable (A Male/Mini-B)Getting Started Guide9 Volt Batteries (4)Calibration Certificate
