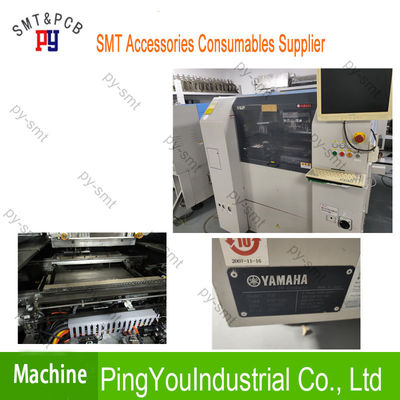

SMT Equipment Solder Paste Printer 3.12KVA YAMAHA YGP KGY-000 With Good Condition

SMT Equipment Solder Paste Printer 3.12KVA YAMAHA YGP KGY-000 With Good Condition

Product Details:

Place of Origin:Japan
Brand Name:YAMAHA
Certification:ISO
Model Number:YGP SMT Printer

Payment & Shipping Terms:

Minimum Order Quantity:1
Price:USD 1-100
Packaging Details:Box
Delivery Time:1 day
Payment Terms:L/C, T/T
Supply Ability:Long-term supply
Description
Machine Model: KGY-000 Parts Name: YAMAHA YGP Solder Paste Screen Printer
Condition: Orginal Used Material: Stainless Steel
Function: YAMAHA YSP Solder Paste Screen Printer Power: 3.12KVA
Voltage: 200/208/220/240/370/400/416V Air Source: 0.45Mpa
Input: 3~50/60Hz
High Light:

auto screw tightening machine

,

epoxy dispensing machine

SMT Equipment Solder Paste Printer YAMAHA YGP KGY-000 With Good Condition

Useof35headenablesidealprintingconditionsettings.•High-speedprintingtact12.3sec! (UnderoptimumconditionsI normalprintingI

withoutusingflaps)•Appliedprintingpressurefeedbackcontrol.• Sturdyframeandhighlyrigidprintingtableassurehighprintingqualityandstability.•

Applicabletostencilframesofvarioussizes.•Noadapterisrequiredandtheset-upprocedureissimpleandspeedy.

3Shead(3S: SwingSingleSqueegee)+ PrintingpressurefeedbackcontrolThe squeegeeattackanglecanbe set freelyand simply.Usingthis

featuretogetherwiththevariablesqueegeespeedandprintingpressure,idealprintingconditionsare assured.At thesametime,excessiveconsump-tion of solderpasteis reducedand

its fallingin dropsisprevented.The set-upandmaintenanceconvenienceisalsoimproved.

GraphicallayerbasealignmentfunctionEvenwhenthe stencilopeningshapeand the PCB patternshapeare different,imagesfromtwo camerasare combinedin layer,therebyoperationof

the PCBto printingstencilrelativepositioningcan be performedsimplyand accurately.

Print inspection Camera

Automatic Cleaning System

Conveyer extension on exit side

The mask without adpter can be fixed

ApplicablePCBL420x W360mmto L50 x W50mm

Printingheads3S head(3S : SwingSingleSqueezee)or Doublesqueegeehead/ Eithermetalsqueegeeor urethanesqueegeeto be selectedPrintingspeed:2 to

200mm/secPrintingpressure:5 to 200N+/-2N(Feedbackcontrolby load cell)PrintingaccuracyPrintingaccuracy(30): +/-0.025mm,positioningrepeatability(30): +/-

0.005mmPrintingline tact12.3sec(Normalprinting)(Withoutusingflaps)(Underoptimumconditions)13.2sec(Normalprinting)(Withusingflaps)(Underoptimumconditions)19.2sec

(Normalprinting+ Cleaning)(Underoptimumconditions)11.0sec(24 capture-imagesinspection)(Underoptimumconditions:Whenthe PCBsize is L180mmx W130mm)

Applicablestencilsize <Note1>L750x W650mmL736x W736mmL650x W550mmL600x W550mmL550x W650mm(Recommended)(Recommended)ApplicableL420x W360mm-0---PCB(mm)L420x W350mm00

---L330x W250mm00000Powersupply3-phaseAC 200/208/220/240/380/400/416V+/-10%50/60HzAir supplysource0.55MPaor more,in clean,dry stateExternaldimension<Note2>L1,820x

W1,705x H1,510mm(covertop)WeightApprox.1,730kg

YSM10 head board KLA-M4506-011 KLA-M4573-010 smt yamaha spare parts green color card KLA-M4570-031

YSM10 head board KLA-M4506-011 KLA-M4573-010 smt yamaha spare parts green color card KLA-M4570-031

KLA-M4506-011

KLA-M4571-020

KLA-M4573-010

KLA-M4570-031

KLJ-MC10W-00 FRONT BLOCK ASSY. 1

2 90990-01J042 BOLT,HEX. S/H 2

3 KHJ-MC105-00 PIN,TAIL 1

4 91312-03008 BOLT HEX.SOCKET HEAD 2

5 KHJ-MC406-00 PLATE,UNDER 1

6 KHJ-MC107-00 SHIM,FRONT BLOCK 1 1 T0.01

7 KHJ-MC108-00 SHIM,FRONT BLOCK 2 1 T0.05

8 KHJ-MC10G-00 SHIM,FRONT BLOCK 3 1 T0.10

9 KHJ-MC10U-00 SHIM,FRONT BLOCK 4 1 T0.03

10 KHJ-MC10V-00 SHIM,FRONT BLOCK 5 1 T0.02

11 KHJ-MC109-00 SHIM,PLATE UNDER 1 2 T0.01

12 KHJ-MC10A-00 SHIM,PLATE UNDER 2 2 T0.05

13 KLJ-MC2F3-00 BRKT. W,REEL HOLDER 1

14 90990-09J008 SCREW,FLAT HEAD 11

15 KHJ-MC183-00 SPACER,TENSION 1 1

16 KHJ-MC184-00 SPACER,TENSION 2 1

17 KLJ-MC186-00 WIRE,UNCLAMP 1

18 KHJ-MC187-00 SPRING,TENSION 1

19 KLJ-MC18H-00 CLAMP LEVER ASSY. 1

20 KHJ-MC139-00 SHAFT,IDLE GEAR 1 1

21 KHJ-MC289-00 PIN,CLAMP 1

22 90440-01J030 CIRCLIP 1

23 KHJ-MC18A-00 SPRING,CLAMP 1

24 KLJ-MC18B-00 COVER,WIRE 1 1

25 KLJ-MC28C-00 COVER W,WIRE 2 1

26 KLJ-MC18K-00 LEVER,UNCLAMP ASSY. 1

27 KLJ-MC18L-00 PIN,LEVER UNCLAMP 1

28 90990-14J001 CIRCLIP 2

29 98707-03006 SCREW,FLAT HEAD 2

30 92A08-03306 SCREW,SET
